Description

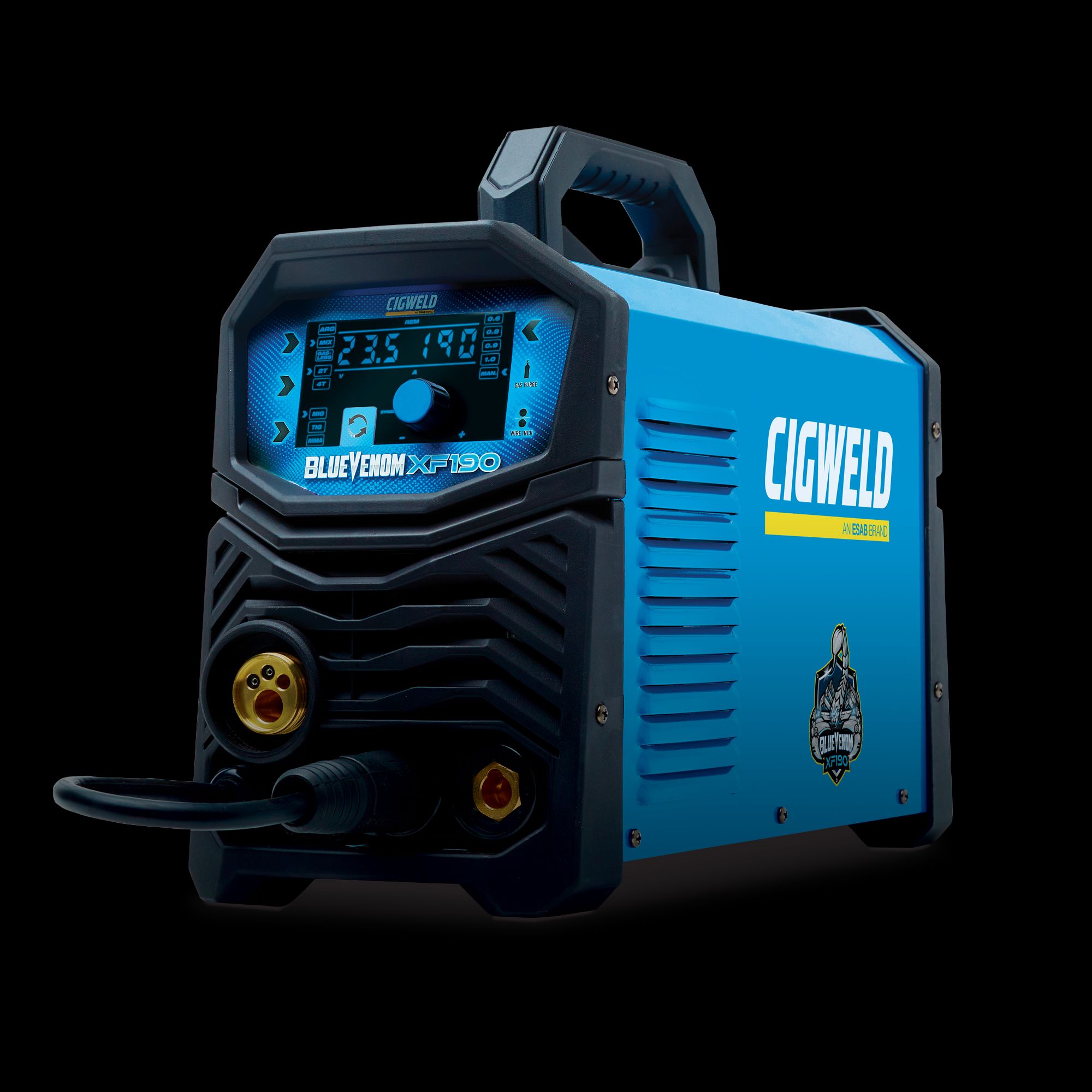

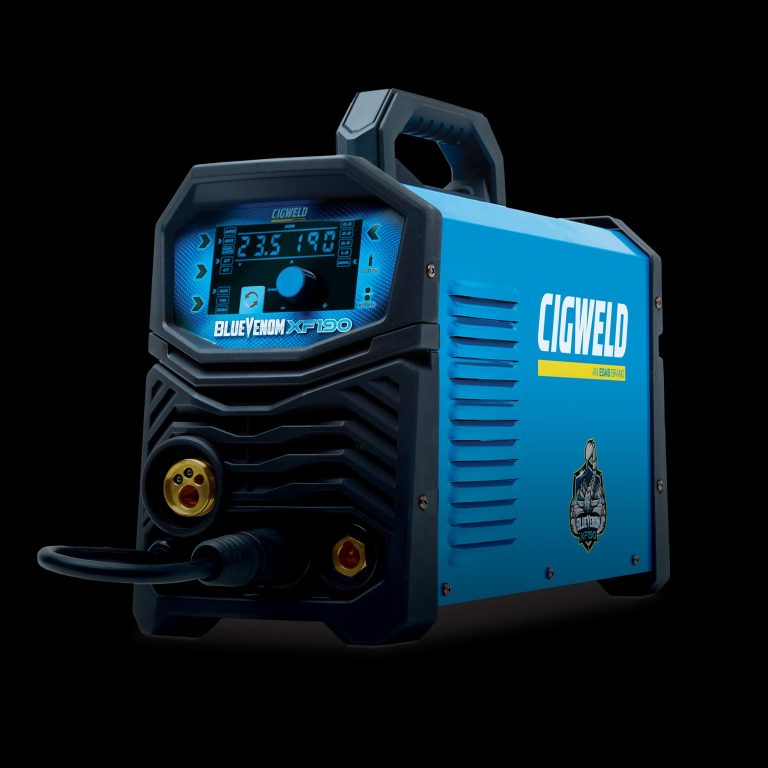

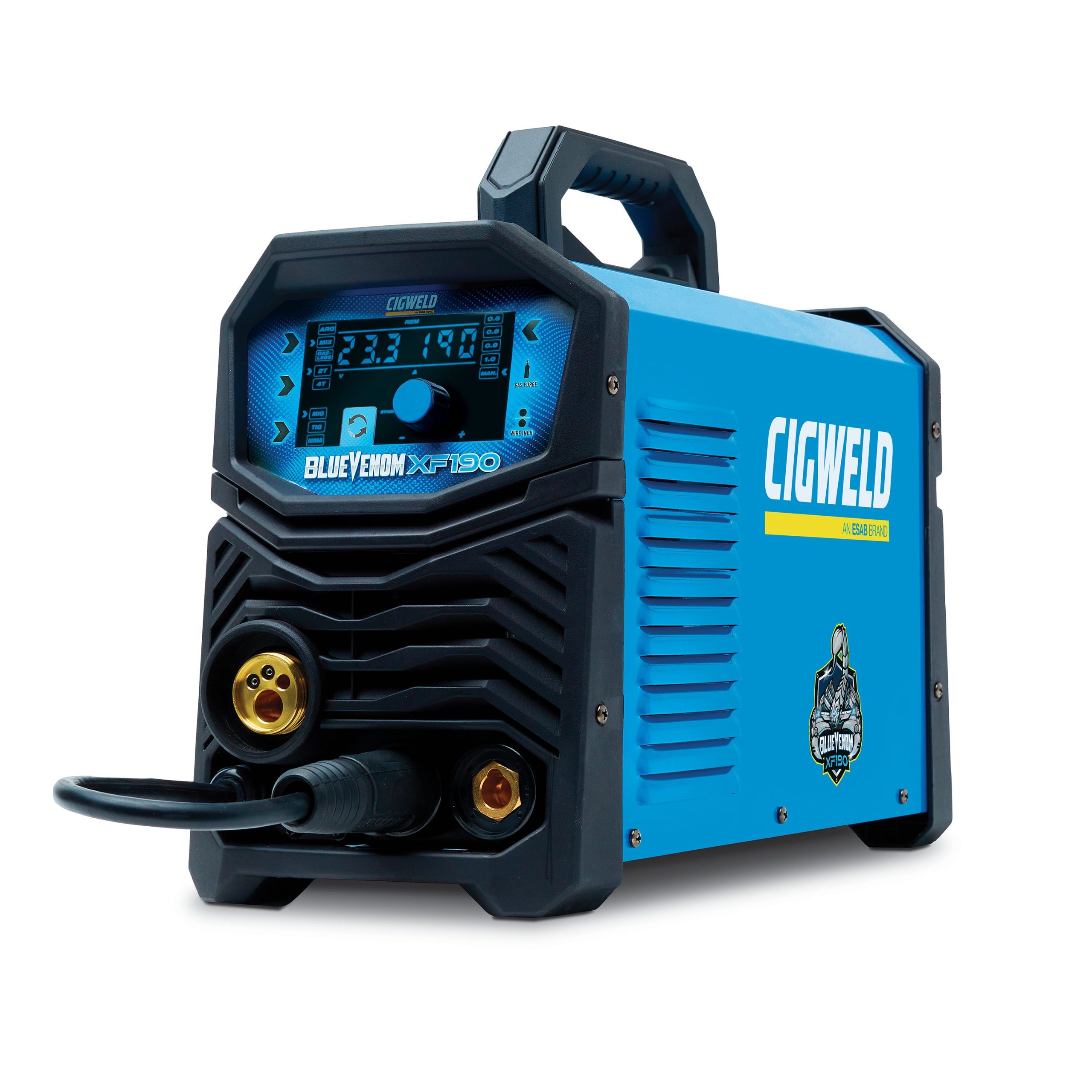

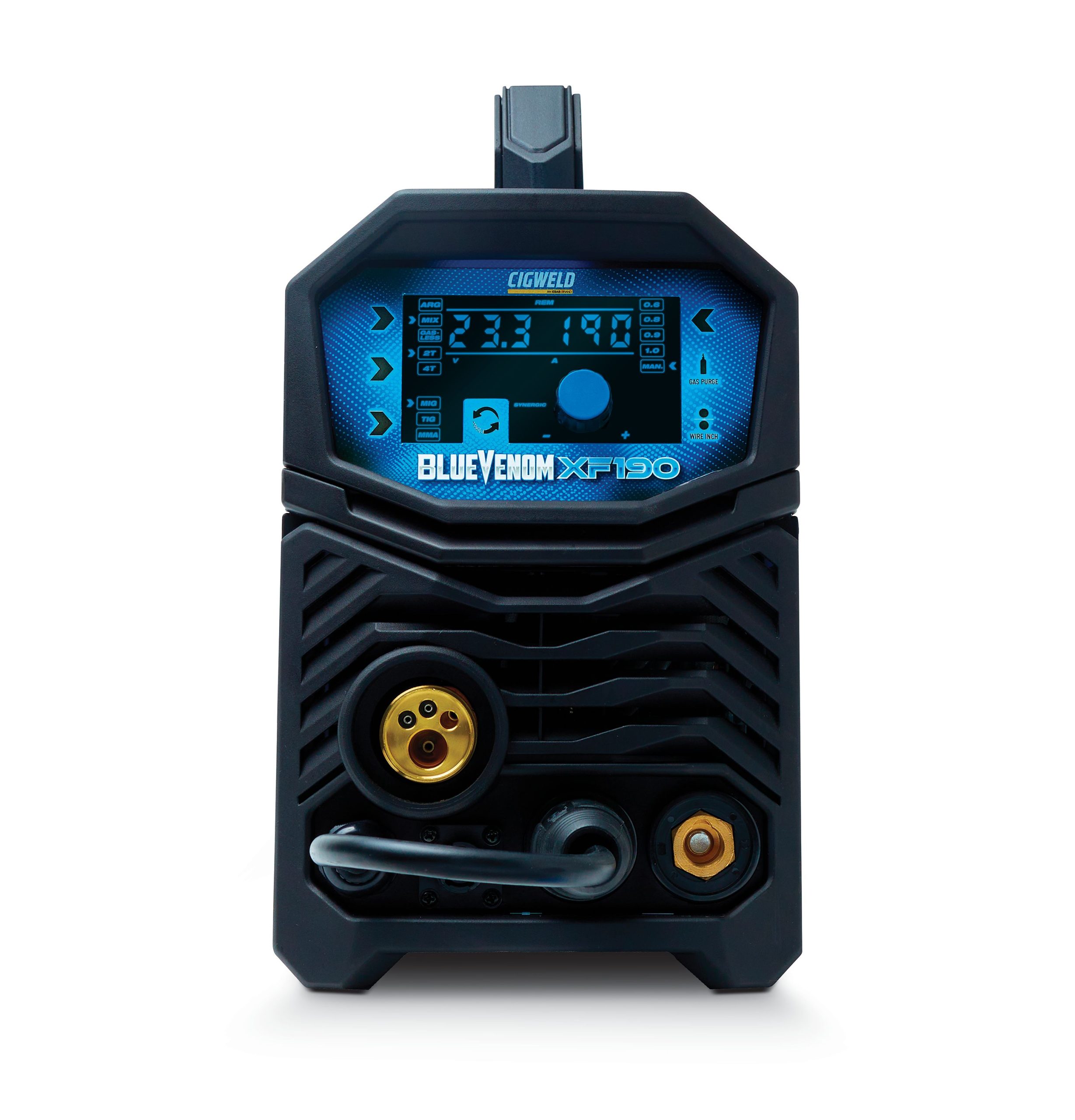

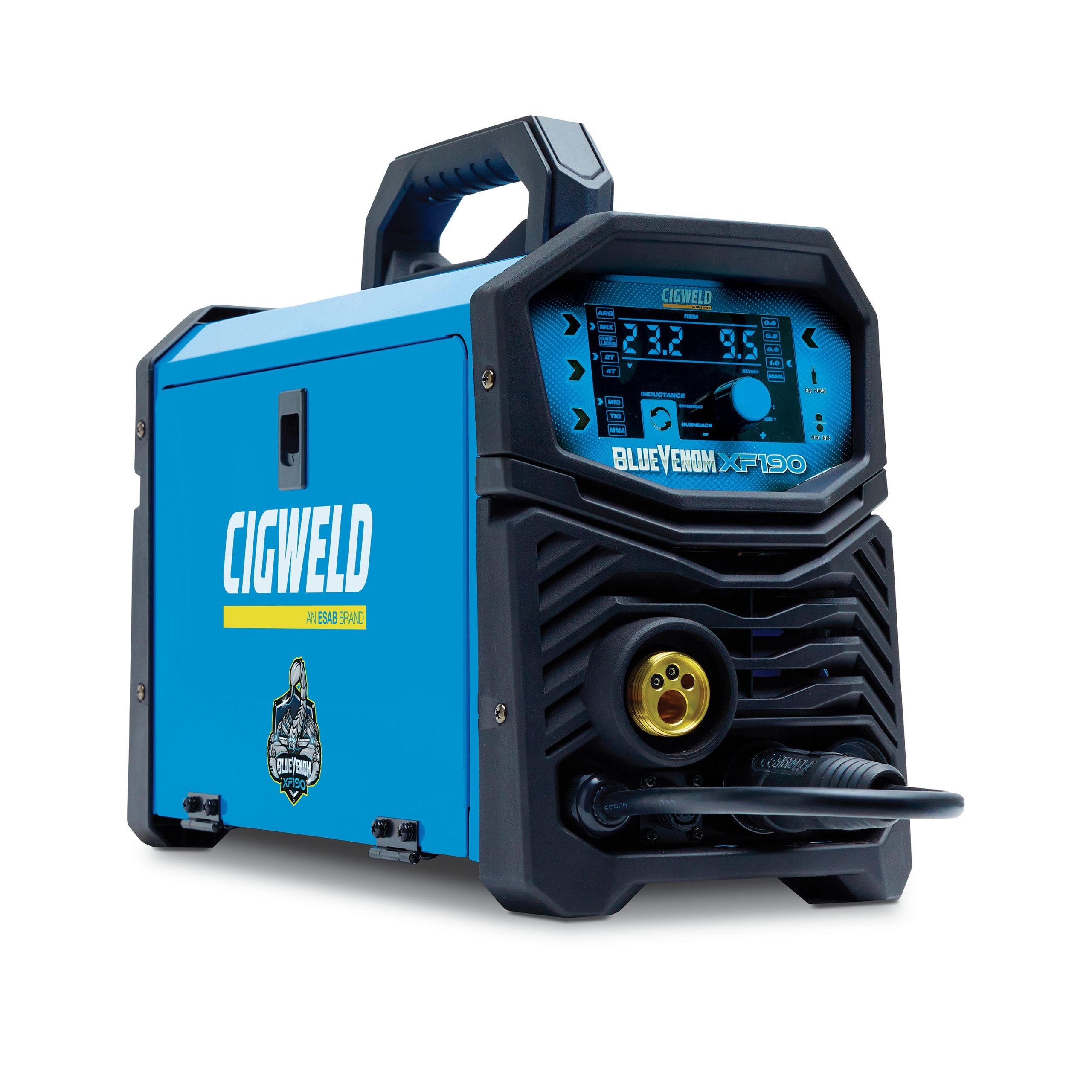

BlueVENOM XF190 – Multi Process Welding Inverter
Synergic 3-in-1 welding inverter with MIG plate thickness selection!
The BlueVENOM XF190 is the perfect solution for light fabrication, maintenance and repairs or for DIY around the home, workshop, worksite, or farm without compromising on quality, safety and performance! With the avid welder in mind, CIGWELD has introduced “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
Additionally, this machine has the following features built-in:
• 2 x Roll All-Driven (top & bottom) Wire Drive system
• MIG Adjustable Wire Burnback & Inductance
• MIG Adjustable Soft & Hard Start (Opti-Start)
• MIG Wire Inch button
• MIG Gas Purge Button

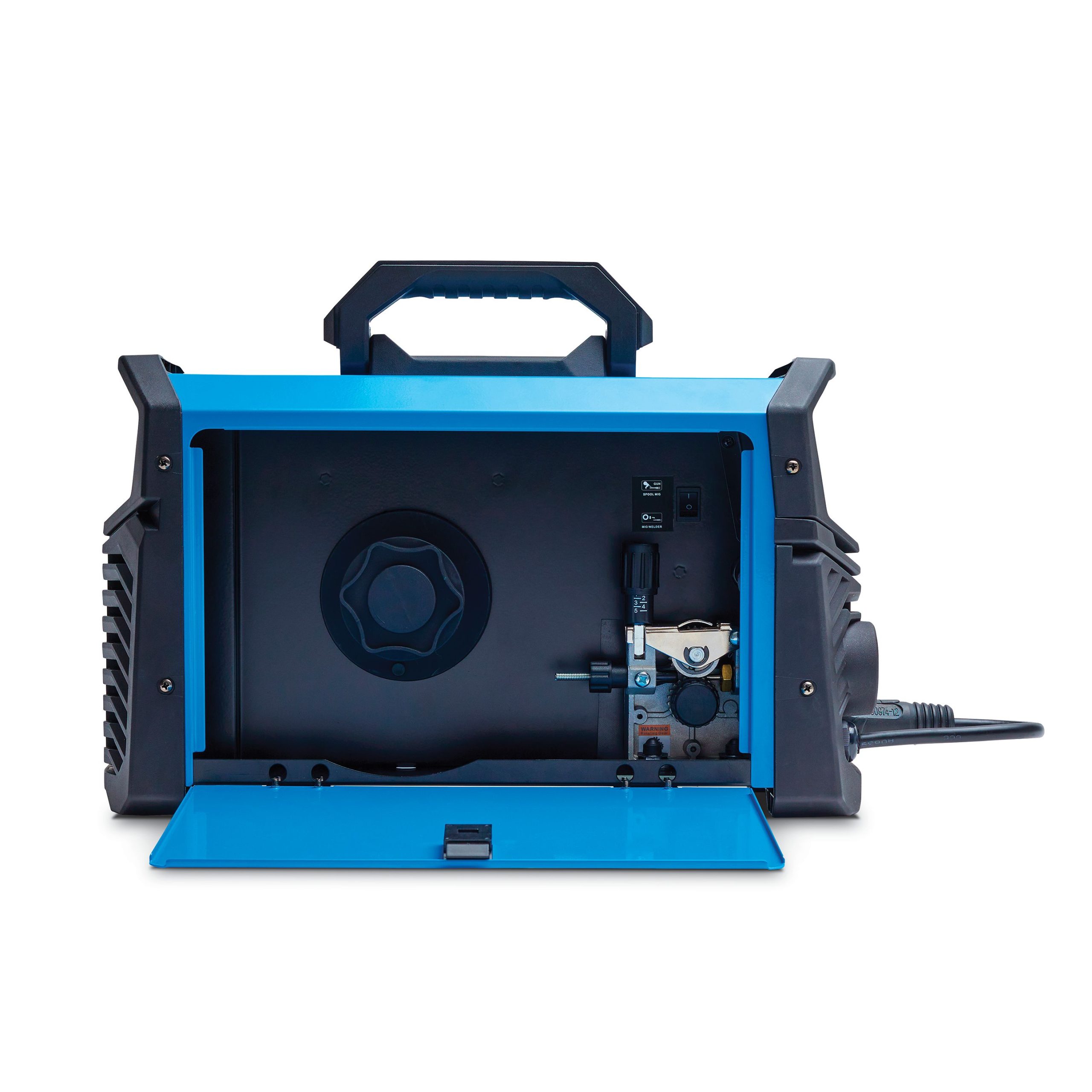

• MIG Side door wire installation, side loader
• MIG Anti de-spooling safety feature
• MIG Spool Gun Compatible
• STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
• STICK Adjustable Hot Start
• STICK Adjustable Arc Force
• STICK Anti-Stick
• Thermal Overload Protection
• TIG Foot Control Compatible
• TIG Dial Remote Torch Compatible

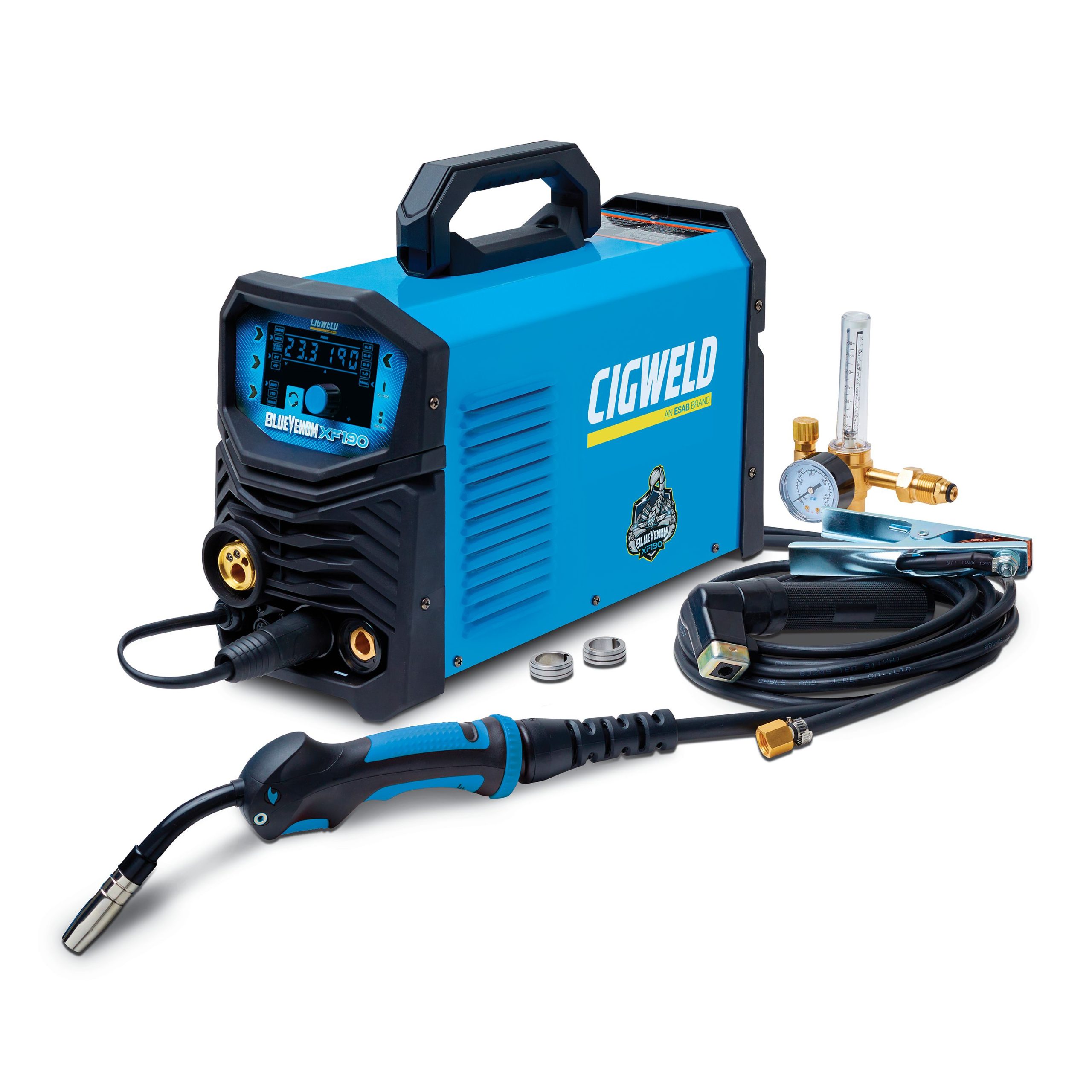

PACKAGE CONTENTS
- BlueVENOM XF190 Power Source
- CMGBZ15E3 MIG Gun 3m- Euro quick connector
- Work Clamp with 3m Lead
- Twist Lock Electrode Holder with 3m Lead
- 2 x Feed Rolls: 8/0.9mm Gasless, 0.8/0.9mm Solid Wires (Fitted).
- 2m Argon Gas Hose and Gas Regulator
- Includes Nylon Inlet Guide for use on Soft Alloy Wires
- Operating Manual
ORDERING DETAILS
BlueVENOM XF190 Package.
P/N: W1400190
Power Supply (Voltage)
Single-Phase 230V/240V +/- 15%
Australian Standard
AS 60974.1:2020
Nominal Supply Frequency
50/60Hz
Supply Lead and Plug supplied
10 Amp
Minimum Single Phase Generator Recommendation
10kVA (at 0.8 Power Factor) at Max Amps
Amperage Range (MIG)
30 – 190A
Voltage Range (MIG)
15.1 - 26.0V
MIG (GMAW) Duty Cycle @ 40°C, 10 minutes
185 Amps @ 9%
72 Amps @ 60%
56 Amps @ 100%
STICK (MMAW) Duty Cycle @ 40°C, 10 minutes:
160 Amps @ 10%
65 Amps @ 60%
50 Amps @ 100%
TIG (GTAW) Duty Cycle @ 40°C, 10 minutes
190 Amps @ 10%
77 Amps @ 60%
60 Amps @ 100%
Nominal DC Open Circuit Voltage in MIG Mode
52V
Open Circuit Voltage (VRD On) STICK Mode
<35V
Weight of Power Source
9.5kg
Power Source Dimensions (mm)
L: 465 x W: 190 x H: 340
Weight of Full Package
16.6kg
Full Package Dimensions (mm)
L: 530 x W: 295 x H: 345
Protection Class
IP 21S
