Description

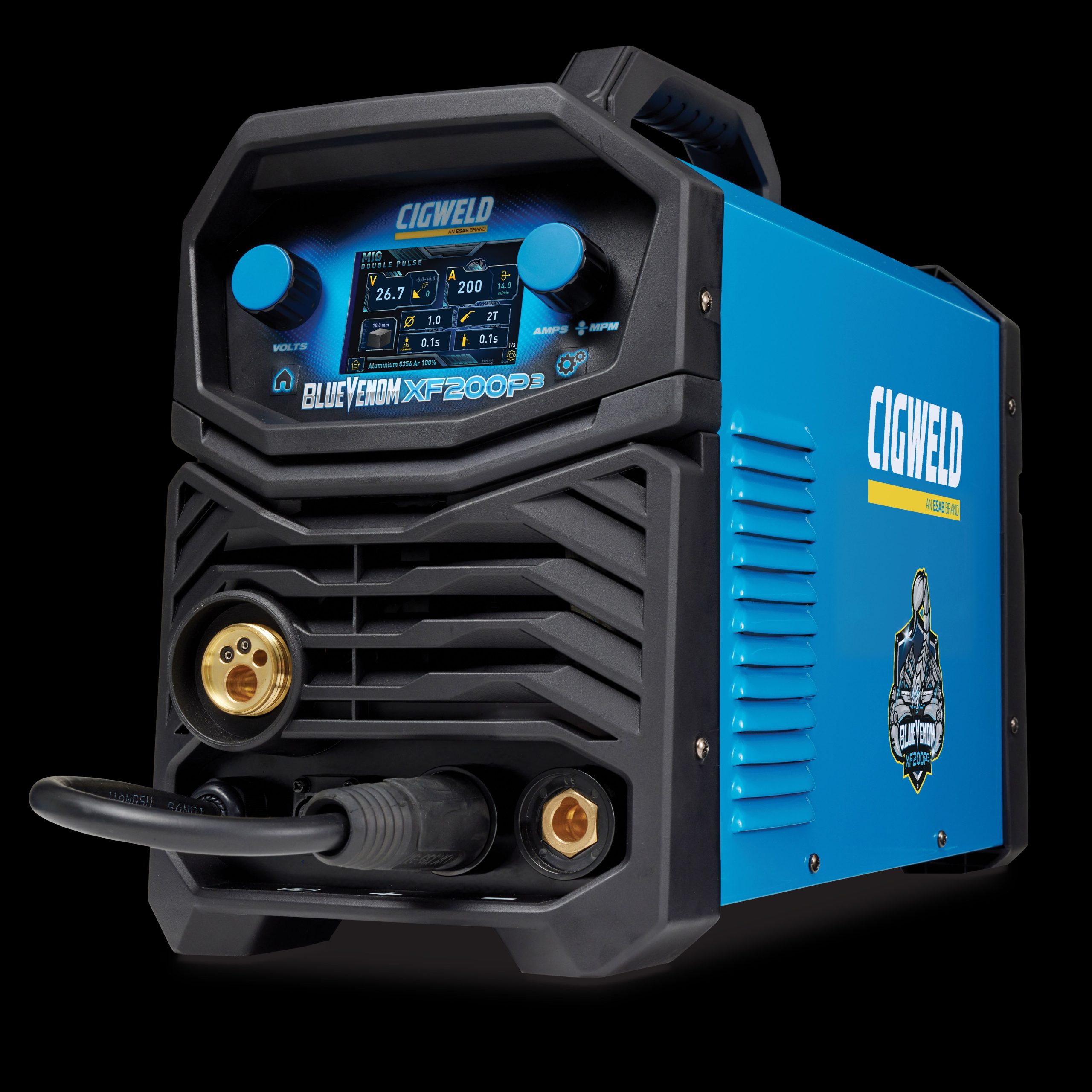

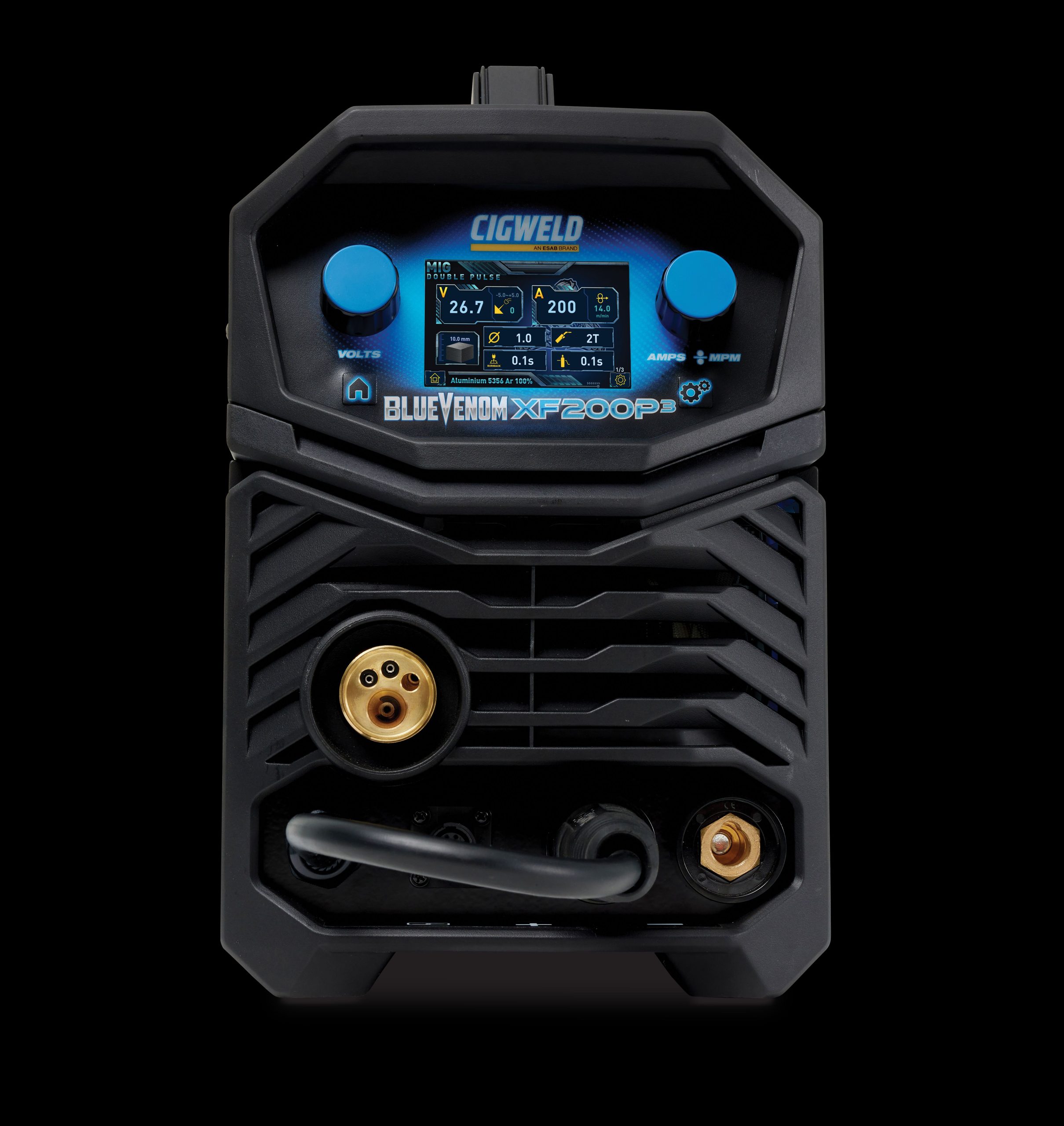

BlueVENOM XF200P3 – Multi Process Welding Inverter
The BlueVENOM XF200P3 is the machine for the serious welding enthusiast, tradesperson or professional who needs to fabricate and weld light structures that require TIG-Like welds on Aluminium, Stainless Steel, Bronze or Steel projects, but need the welding speed and ease-of-use of the MIG Process. Suitable for use at maintenance departments, farm/home workshops, job sites and marine repair/service centres without compromising on price for excellent results!
With the avid welder in mind, CIGWELD has introduced “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
Additionally, this machine has the following features built-in:
• 2 x Roll All-Driven (top & bottom) Wire Drive system
• MIG Single and Double Pulse
• MIG Adjustable Wire Burnback & Inductance
• MIG Adjustable Soft & Hard Start (Opti-Start)
• MIG Wire Inch button | MIG Gas Purge Function

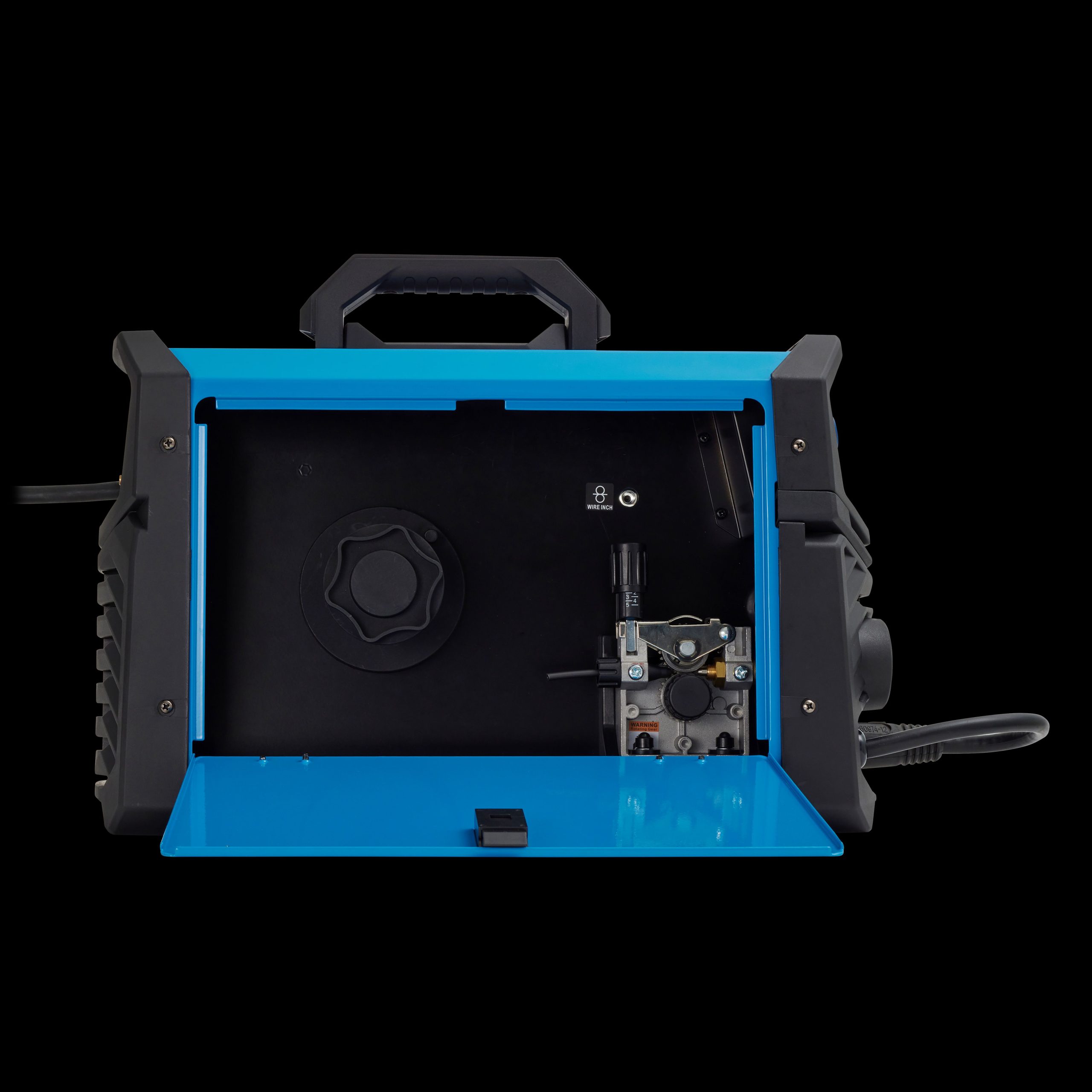

• MIG Side door wire installation, side loader
• MIG Anti de-spooling safety feature
• MIG Spool Gun Compatible
• STICK and STICK-PULSE
• STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
• STICK Adjustable Hot Start | STICK Adjustable Arc Force | STICK Anti-Stick
• TIG DC-Lift and TIG-PULSE DC-Lift
• TIG Foot Control Compatible
• TIG Dial Remote Torch Compatible
• Thermal Overload Protection

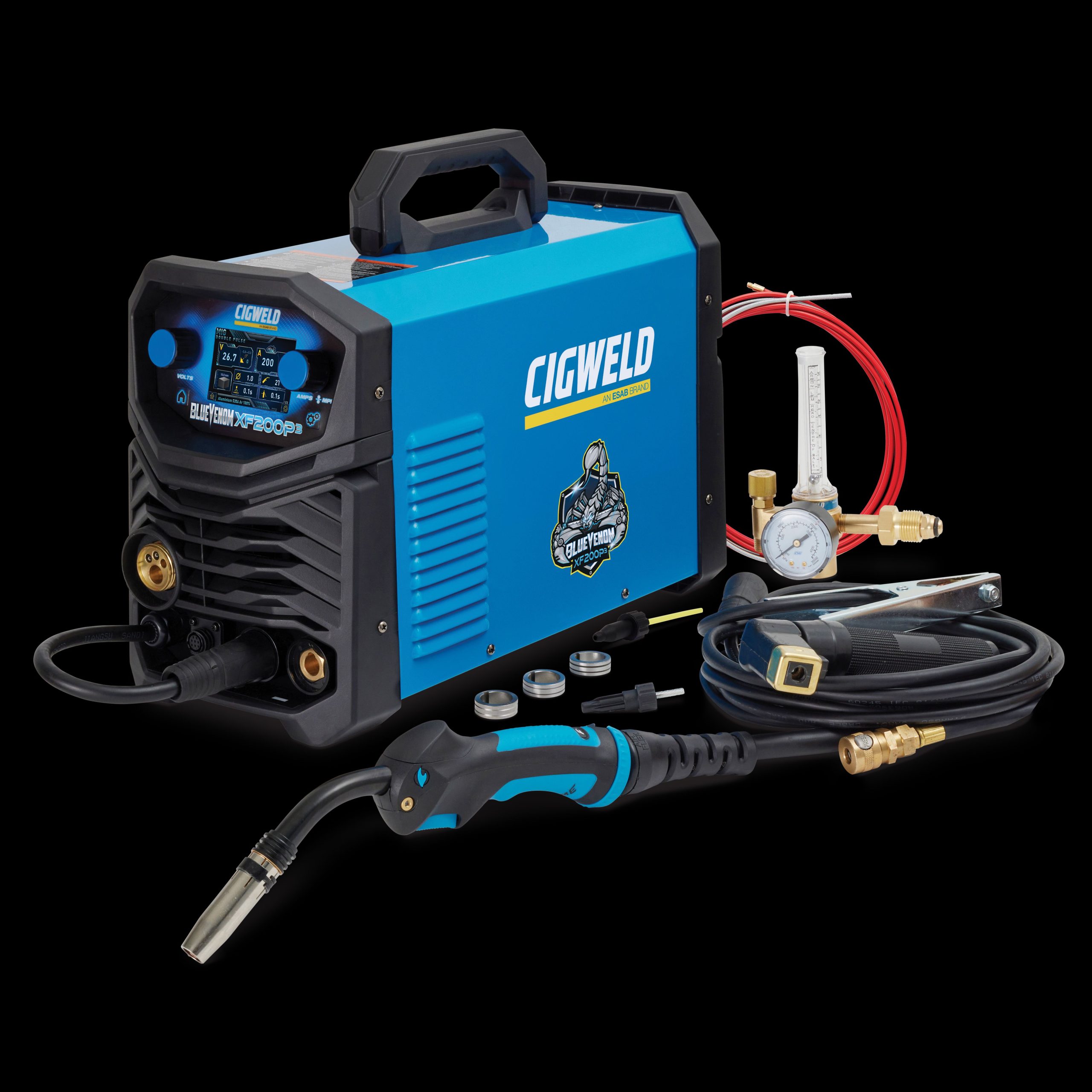

PACKAGE CONTENTS
• BlueVENOM XF200P3 Power Source
• CMGBZ24E3 MIG Gun 3m Euro quick connector set up with an Aluminium Liner,
plus a spare Steel liner is supplied for hard wires
• Work Clamp with 3m Lead
• Twist Lock Electrode Holder with 3m Lead
• 3 x Feed Rolls: 0.8/0.9mm Gasless, 0.9/1.0mm U-Groove for Soft Wires (Fitted), 0.8/0.9mm Solid Wires.
• 2m Argon Gas Hose and Gas Regulator/Flowmeter
• Includes Yellow Nylon Inlet Guide for use on Soft Alloy Wires
and a Spring Steel Inlet Guide for Hard Wires
• Operating Manual
ORDERING DETAILS
BlueVENOM XF200P3 Package.
P/N: W1400200
Power Supply (Voltage)
Single-Phase 230V/240V +/- 10%
Australian Standard
AS 60974.1:2020
Nominal Supply Frequency
50/60Hz
Supply Lead and Plug supplied
15 Amp
Minimum Single Phase Generator Recommendation
12kVA (at 0.8 Power Factor) at Max Amps
Amperage Range (MIG)
30 – 200A
Voltage Range (MIG)
15.5 - 24.0V
MIG (GMAW) Duty Cycle @ 40°C, 10 minutes
200 Amps @ 15%
100 Amps @ 60%
77 Amps @ 100%
STICK (MMAW) Duty Cycle @ 40°C, 10 minutes:
195 Amps @ 10%
80 Amps @ 60%
62 Amps @ 100%
TIG (GTAW) Duty Cycle @ 40°C, 10 minutes
200 Amps @ 15%
100 Amps @ 60%
77 Amps @ 100%
Nominal DC Open Circuit Voltage in MIG Mode
67V
Open Circuit Voltage (VRD On) STICK Mode
<35V
Weight of Power Source
13.4kg
Power Source Dimensions (mm)
L: 495 x W: 220 x H: 335
Weight of Full Package
21.7kg
Full Package Dimensions (mm)
L: 580 x W: 310 x H: 395
Protection Class
IP 21S
