Description

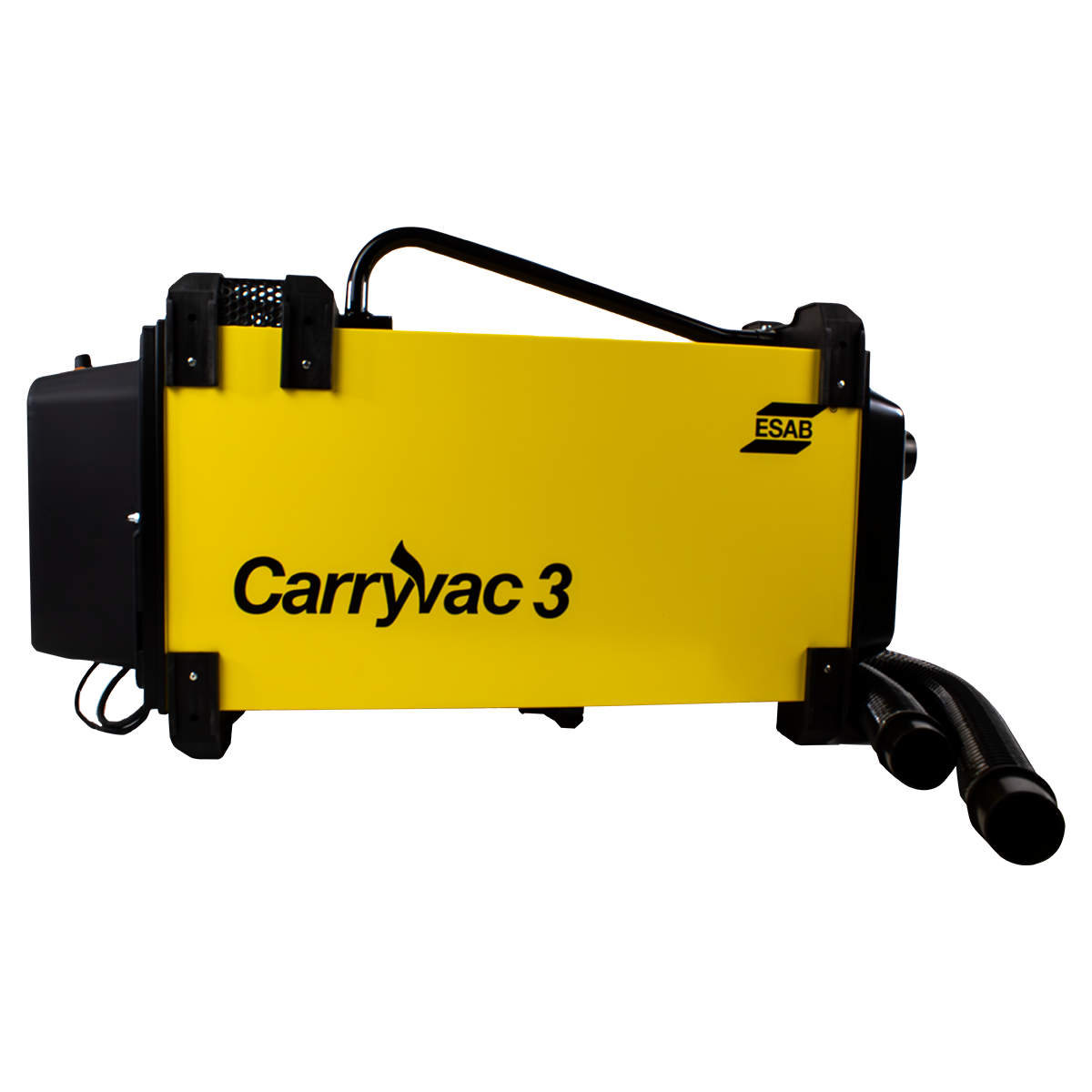

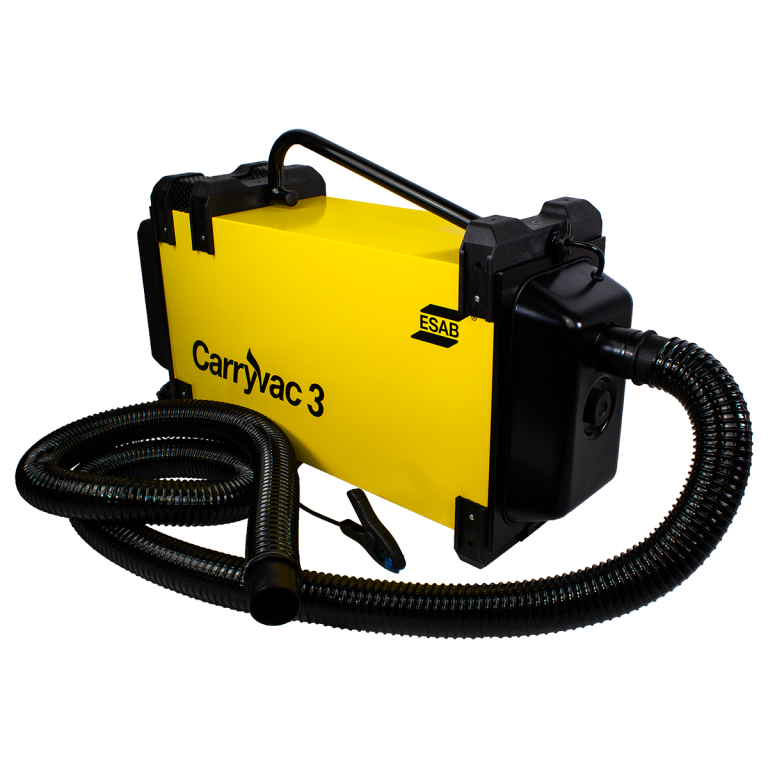

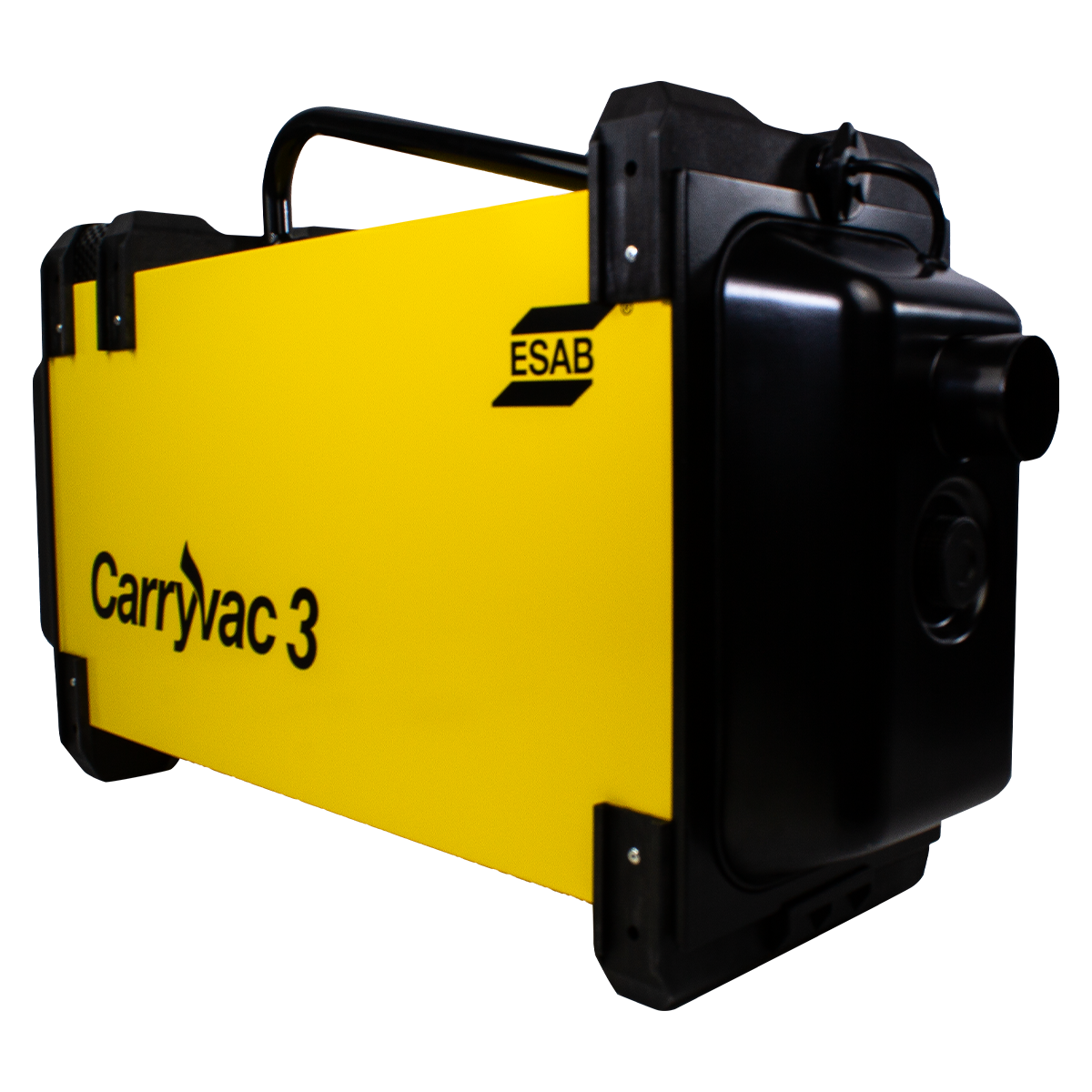

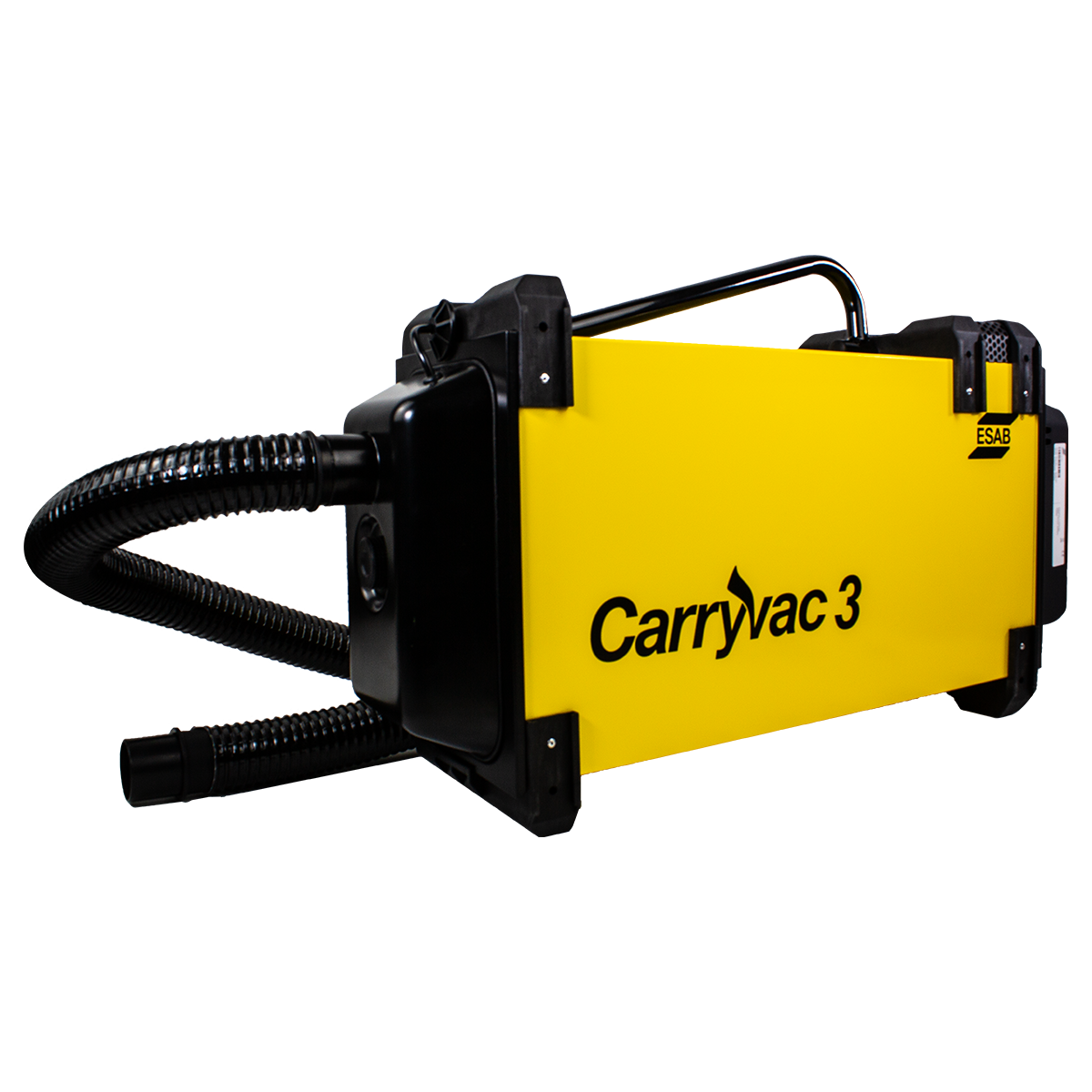

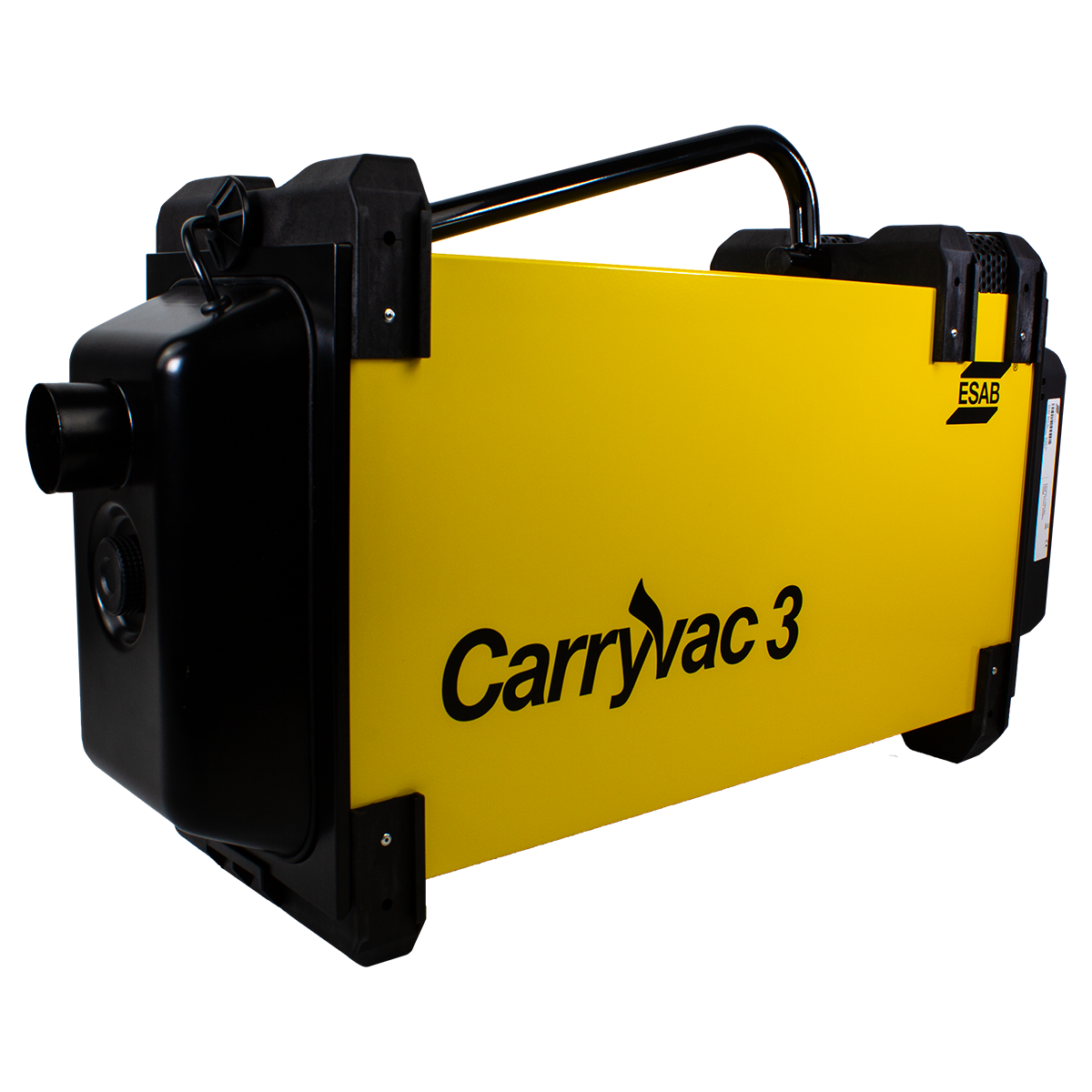

The ESAB CarryVac 3 AST is a small, lightweight, and portable fume extraction unit used to maintain a healthy work environment by extracting fumes directly at the source in light duty welding applications. Designed to be carried to the working area, it can be connected to either a fume extraction MIG Welding Gun or to an optional extraction nozzle to extract harmful welding fumes. Weld fumes are filtered and captured in a hygienically packed filter that offers complete protection from particles keeping them isolated from welders even when performing a filter change.
Features:
- Nanofiber filter with extended dust holding capacity and 99% efficiency in capturing welding fumes

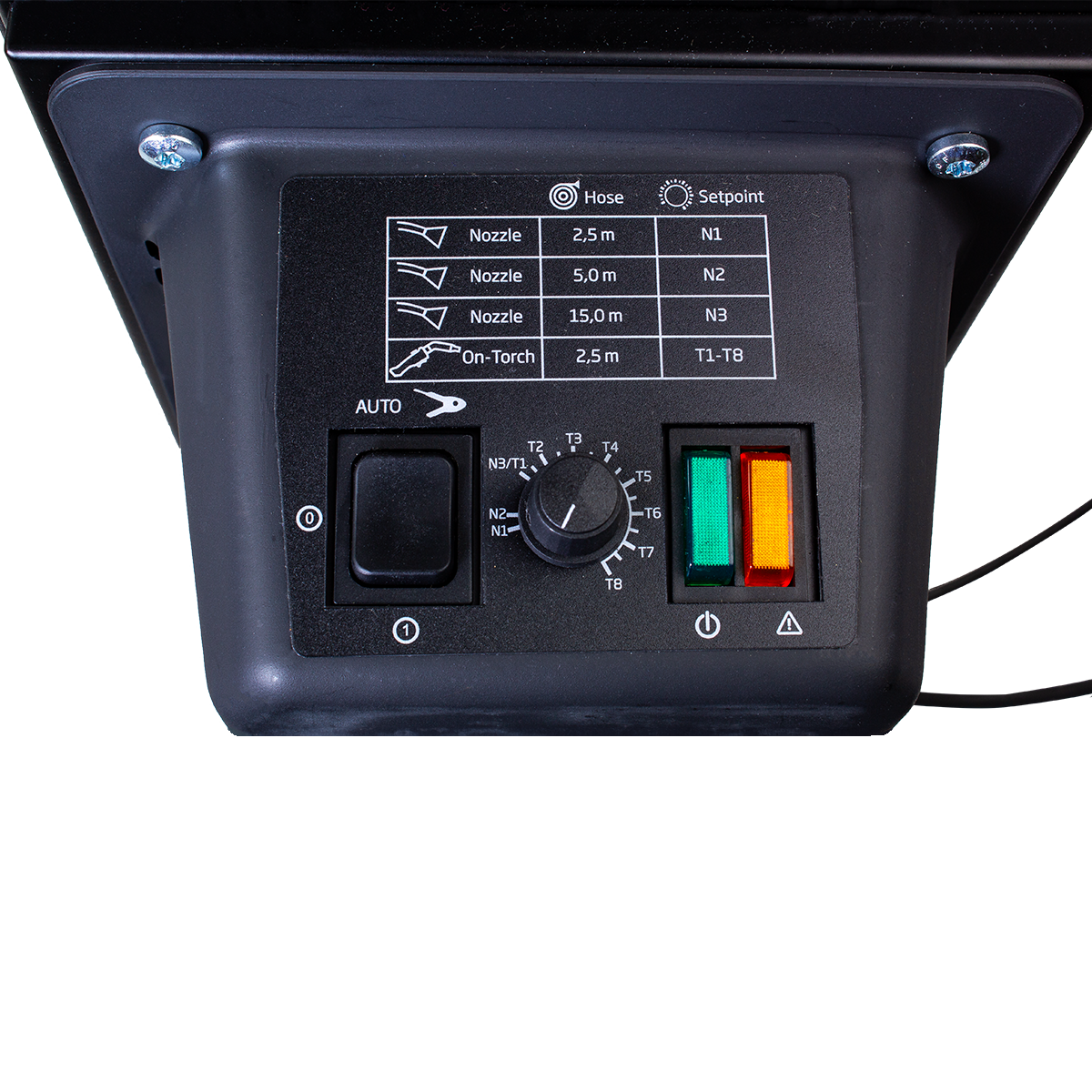

- Manual and automatic start/stop function which increases the service life of each filter and of the unit itself
- Adjustable flow to adapt to different torches and hoods
- Automatic flow adjustment to maintain correct airflow and suction during operations
- Alarm notifications
- ISO 21904 compatible for industry standards compliance
- Suitable for fume extraction for light welding applications
Welding processes:
- Welding, GMAW (MIG/MAG)
- Welding, GTAW (TIG)
- Welding, PAW – Plasma Arc
- Welding Welding, STICK/MMA Welding
Suction nozzles:
Three different suction nozzles can accompany the CarryVac 3 (sold separately).
- Suction nozzle TM-200, 200mm wide – P/N: 0700003222
- Suction nozzle PM-300, 300mm wide – P/N: 0700003223
- Suction nozzle TM-80, 80mm round – P/N: 0700003221
The CarryVac 3 is designed to work with the ESAB, CIGWELD and TBi range of Fume Extraction MIG Guns.
Ordering information:
- CarryVac 3 AST, 230V, EU – 0700003890
- ESAB PSF 415C, 4m – 7000254141
- TBi 240 E3, 4m – 212P3X1340
- TBi 360 E3, 4m – 214P3X1340
Specifications:
Primary Voltage
110/230 VAC ± 15% , 1ph, 50/60 Hz
Power
1250 W (110-120V)
1300 W (220-240V)
Filter Surface
5.3m²
Noise Level (at 1m/3ft, 100% motor power, ISO 11201)
79 dB(A)
Operating Temperature
0 to +35 °C
Storage Temperature
-20 to +60 °C
Extraction Capacity
180 m³/h
Extraction Capacity, 5 m Hose
165 m³/h
Filter Efficiency
>99 %
Standards (Filter)
ISO 21904-2
F9 (EN779)
MERV 14 (ASHRAE 52.2)
Standards (Unit)
EN ISO 21904-1:2020, EN ISO 12100:2010, EN ISO 20607:2019
EN 61000-6-2:2019, EN 61000-6-4:2019
EN 61000-3-3:2013, EN 60204-1:2018
Max. Vacuum (generated by the motor)
25 kPa
Max. Vacuum (at hose connection)
18 kPa
Hose Diameter
50 mm
Dimensions L x W x H
800 x 222 x 406 mm
Weight
14.8 kg
