Description

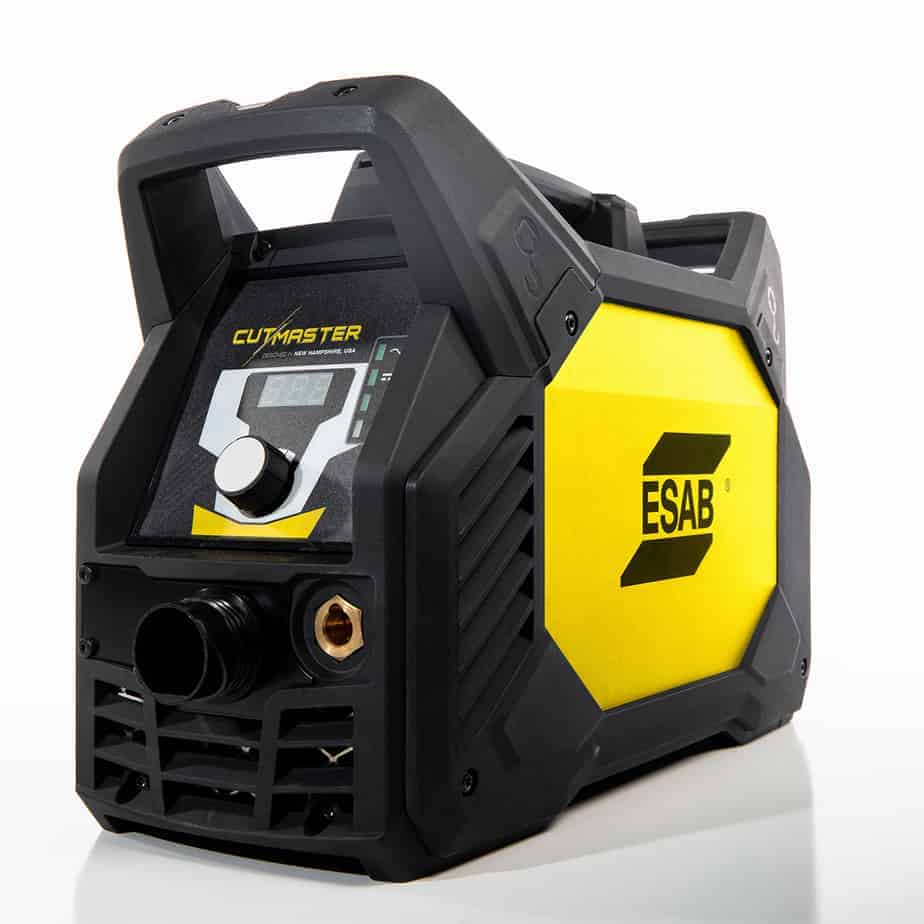

You deserve the best portable plasma cutter, which is why we created Cutmaster 40. With an unprecedented combination of mobility and power, Cutmaster 40 exceeds expectations for a machine in its class.
Cuts up to 12mm, with Maximum Sever of up to 16mm and weighs in at only 10kg!
ESAB’s industry-leading service and support means that if you do need help, you will be protected by the most comprehensive warranty in the business.
Cutmaster 40, like every ESAB machine, is backed by our commitment to superior customer service and support.
PACKAGE CONTENTS
- Cutmaster 40 power supply
- SL60 90° torch with lead
- Work lead with ground clamp
- Spare parts kit
- 6 mm (1/4 in.) NPT air fitting with quick connect
- Operating manual.
Amperage Output
15–40 A, continuously adjustable
Recommended Generator Size
8.0 kW output
Open-Circuit Voltage (OCV)
280 V
Input Voltage
200–240 VAC +/- 10% 50/60 Hz, 1ph
Rated Duty Cycle
40% @ 40 A
60% @ 30 A
100% @ 20 A
Amperage Draw (at Maximum Cut Capacity)
I1eff 15.5 A @ 230 V (26 A @ 230 V)
Input Power Cable
2.7 m (9 ft.), 2.5 mm² input cable
Work Lead with Ground Clamp
4 m (13 ft.) 10 mm² work cable with 50 mm connection
Gas Requirements
Compressed air
Operating Temperature Range
0°C–50°C (32°F–122°F)
Operating Input Air Pressure Range
6.2–8.6 bar (90–125 psi)
Minimum Airflow Requirements (Cutting and Gouging)
142–235 l/min. (300–500 cfh)
Recommended Cut
Up to 12 mm (1/2 in.)
Maximum Sever
Up to 16 mm (0.63 in.)
Pierce Rating
12 mm (1/2 in.)
SL60 Torch Duty Cycle
100% at 40 A @ 189 l/min. airflow
Torches (for use with the Cutmaster 40)
SL60 1Torch (supplied) SL60QD 1Torch (Coming Soon)
Dimensions L x W x H
460 x 200 x 320 mm
Weight
10 kg
