Description

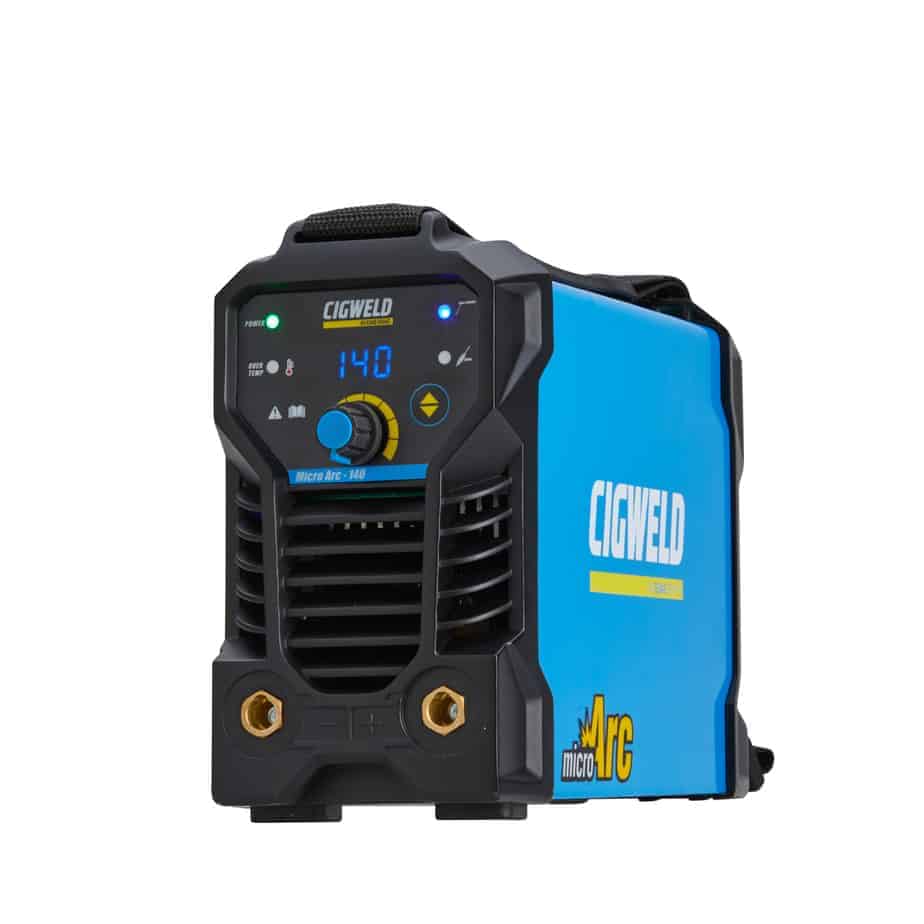

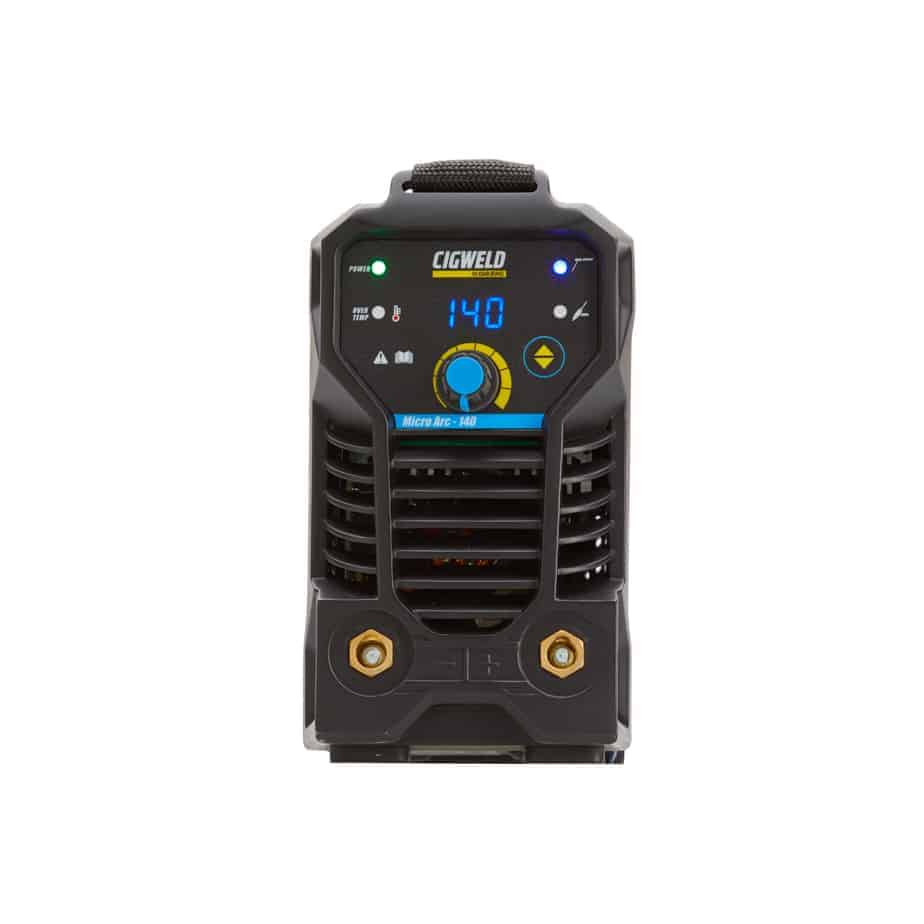

Weighing in at a slight 3kg in the hand and sized at only 100mm Wide and 185mm High on your bench, this little gem is conveniently thrown over the shoulder and taken wherever you need to go. With adjustable welding current from 10 to 140 amps, and adjustable Hot Start and Arc Force, you have the flexibility to run standard general-purpose 2.5mm electrodes for light gauge work (less than 3.0mm plate) and 3.2mm electrodes for heavier metals.
The MicroArc 140 also has a lift TIG function that offers stable TIG welding characteristics at 140A@20% when used with a suitable TIG torch and argon shielding gas. With a 10Amp plug and 3m twist lock electrode holder and work lead, its hard to go past the MicroArc140 as your lightweight portable welder of choice around the workshop or out on the job site.
Plant Part Number
W1008162
Power Source Dimensions
100mm W x 185mm H x 252mm D
Power Source Mass
3KG
Cooling
Fan Cooled
Welder Type
Stick and Lift TIG Multi Process Inverter Power Source
Australian Standard
AS 60974.1-2020
Number of Phases
Single Phase
Nominal Supply Voltage
240V AC ± 10%
Nominal Supply Frequency
50/60 Hz
Welding Current Range
10 - 140 A
Nominal DC Open Circuit Voltage
71V
Effective Input Current (I1eff)
10 Amps
Maximum Input Current (I1max)
26 Amps
Minimum Single Phase Generator Recommendation
6.0 kW (7.5 kVA @ 0.8 PF
STICK (MMAW) Welding Output, 40ºC, 10 min.
140A@15%, 25.6V
70A@60%, 22.8V
54A@100%, 22.2V
TIG (GTAW) Welding Output, 40ºC, 10 min
140A@20%, 15.6V
81A@60%, 13.2V
63A@100%, 12.5V
Protection Class
IP21S
